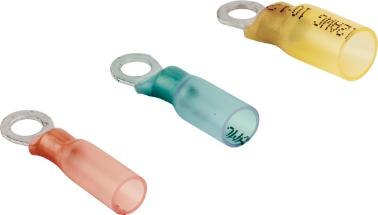

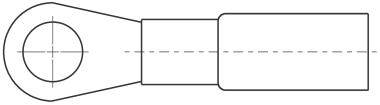

HEAT SHRINK RING TERMINAL
Tin Plated Copper/Injection Molded Nylon| Bulk | Display | AWG | Ring | Color | Qty. Per Bag | Listed | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|---|
| 429212H | 429212H-1 | 22-18 | #4-6 | Red | 100/6 | UL/CSA | 1.00/.06 | 5 bag/10 sets | |
| 429213H | 429213H-1 | 22-18 | #8 | Red | 100/6 | UL/CSA | 1.00/.06 | 5 bag/10 sets | |
| 429214H | 429214H-1 | 22-18 | #10 | Red | 100/6 | UL/CSA | 1.00/.06 | 5 bag/10 sets | |
| 429216H | 429216H-1 | 22-18 | 1/4" | Red | 100/6 | UL/CSA | 1.00/.06 | 5 bag/10 sets | |
| 429217H | 429217H-1 | 22-18 | 5/16" | Red | 100/6 | UL/CSA | 1.00/.06 | 5 bag/10 sets | |
| 429218H | 429218H-1 | 22-18 | 3/8" | Red | 100/6 | UL/CSA | 1.00/.06 | 5 bag/10 sets | |
| 429232H | 429232H-1 | 16-14 | #4-6 | Blue | 100/6 | UL/CSA | 1.00/.06 | 5 bag/10 sets | |
| 429233H | 429233H-1 | 16-14 | #8 | Blue | 100/6 | UL/CSA | 1.00/.06 | 5 bag/10 sets | |
| 429234H | 429234H-1 | 16-14 | #10 | Blue | 100/6 | UL/CSA | 1.00/.06 | 5 bag/10 sets | |
| 429236H | 429236H-1 | 16-14 | 1/4" | Blue | 100/6 | UL/CSA | 1.00/.06 | 5 bag/10 sets | |
| 429237H | 429237H-1 | 16-14 | 5/16" | Blue | 100/6 | UL/CSA | 1.00/.06 | 5 bag/10 sets | |
| 429238H | 429238H-1 | 16-14 | 3/8" | Blue | 100/6 | UL/CSA | 1.00/.06 | 5 bag/10 sets | |
| 429252H | 429252H-1 | 12-10 | #4-6 | Yellow | 100/6 | UL/CSA | 1.00/.06 | 5 bag/10 sets | |
| 429253H | 429253H-1 | 12-10 | #8 | Yellow | 100/6 | UL/CSA | 1.00/.06 | 5 bag/10 sets | |
| 429254H | 429254H-1 | 12-10 | #10 | Yellow | 100/6 | UL/CSA | 1.00/.06 | 5 bag/10 sets | |
| 429256H | 429256H-1 | 12-10 | 1/4" | Yellow | 100/6 | UL/CSA | 1.00/.06 | 5 bag/10 sets | |
| 429257H | 429257H-1 | 12-10 | 5/16" | Yellow | 100/6 | UL/CSA | 1.00/.06 | 5 bag/10 sets | |
| 429258H | 429258H-1 | 12-10 | 3/8" | Yellow | 100/6 | UL/CSA | 1.00/.06 | 5 bag/10 sets |
Heat Shrink Ring Terminals are designed to transfer electrical current. Ring terminals connect two or more wires to a single connection point. These connectors can be crimped anywhere and are frequently used during electronic installations to eliminate soldering the wire joint. Pliable when crimping, the insulation also offers superior heat and deformation resistance. Transparent insulation allows for easy inspection of wire connection. These connectors benefit from the addition of heat shrink insulation, protecting against moisture and vibration, preventing corrosion and accidental wire pull-out, and significantly increasing the longevity and dependability of the connection. Industry standard color-coding indicates wire size range. Constructed of injection molded nylon insulation and tin plated copper barrel and ring for maximum conductivity and holding strength. Terminals comply with ABYC standard E-11.
