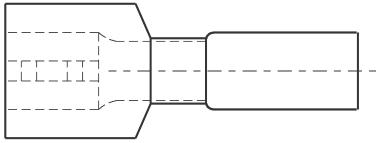

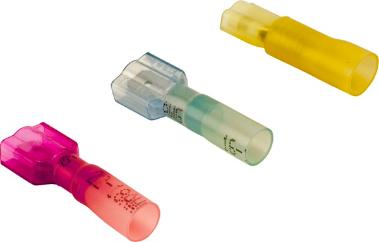

HEAT SHRINK INSULATED PUSH-ON TERMINAL

Tin Plated Copper/Injection Molded Nylon
Bulk Display Size AWG Male/Female Color Qty. Per Bag Listed Weight Std. Pack Add to List
429311H 429311H-1 .250" 22-18 Male Red 100/6 UL/CSA 1.00/.06 5 bag/10 sets
429315H 429315H-1 .250" 22-18 Female Red 100/6 UL/CSA 1.00/.06 5 bag/10 sets
429331H 429331H-1 .250" 16-14 Male Blue 100/6 UL/CSA 1.00/.06 5 bag/10 sets
429335H 429335H-1 .250" 16-14 Female Blue 100/6 UL/CSA 1.00/.06 5 bag/10 sets
429351H 429351H-1 .250" 12-10 Male Yellow 100/4 UL/CSA 1.00/.04 5 bag/10 sets
429355H 429355H-1 .250" 12-10 Female Yellow 100/4 UL/CSA 1.00/.04 5 bag/10 sets

Heat Shrink Insulated Push-On Terminals are designed to transfer electrical current. Push-On terminals create a quick connect termination for situations where the connection may need to be broken with frequency. These connectors can be crimped anywhere and are frequently used during electronic installations to eliminate soldering the wire joint. Pliable when crimping, the insulation also offers superior heat and deformation resistance. Transparent insulation allows for easy inspection of wire connection. These connectors benefit from the addition of heat shrink insulation, protecting against moisture and vibration, preventing corrosion and accidental wire pull-out, and significantly increasing the longevity and dependability of the connection. Industry standard color-coding indicates wire size range. Constructed of injection molded nylon insulation and tin-plated copper barrel for maximum conductivity and holding strength. Terminals comply with ABYC standard E-11.
