DELUXE POWER SOCKET

Stamped Brass/Injection Molded Nylon & ABS

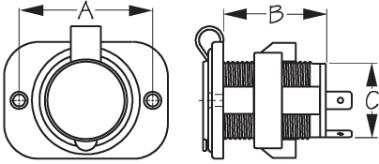

Bulk Display Description A B C Weight Std. Pack Add to List
n/a 426120-1 Receptacle, Speed Nut, Cap & Hardware 1-15/16" 1-1/2" 1-1/16" .07 10 ea
426125 n/a Receptacle, Speed Nut & Cap Only 1-15/16" 1-1/2" 1-1/16" .05 10 ea

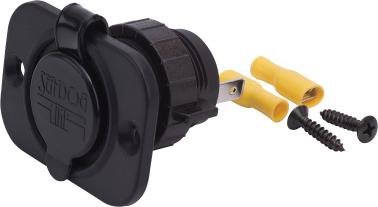

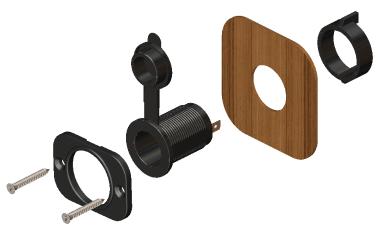

This Deluxe Power Socket adds power easily almost anywhere. Installation is as easy as drilling a 1-1/8" hole, inserting the socket body, tightening the locking nut, and connecting the wires. Constructed of injection molded nylon and ABS with stamped brass contacts. Display packed version includes all necessary mounting hardware and wire connectors. Maximum: 12VDC, 16A.

⚠ Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Button pdf d68e31203df031f489d35f81c36d6cf5ca4a4c7b4af67bf8fd1dc7ea535478ea View Power Socket Instructions
