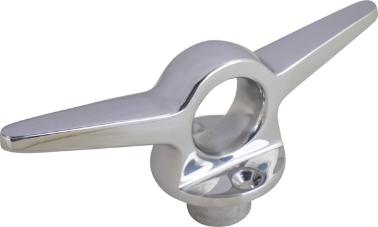

LIFTING RING CLEAT

Investment Cast 316 Stainless Steel
Bulk Display A B C D Max. Vertical Load Fastener Weight Std. Pack Add to List
048210 n/a 6" 1-1/16" 5/8"-11 NC* 1" 4,000 lbs. #10 FH 1.21 5 ea
048220 n/a 6-11/16" 1-1/2" 5/8"-11 NC* 1" 5,000 lbs. #10 FH 1.26 5 ea

These dual purpose Lifting Ring Cleats can be used as part of a bow or stern lifting system and as a cleat. Used in conjunction with a lifting ring anchor plate (048270) and bow or stern eyes (080055, 080085, 080155, 080187) to reduce hull stress during lifting. *Accepts 5/8”-11 NC right hand threaded rod. Constructed of corrosion resistant investment cast 316 stainless steel. Installs with two #10 FH fasteners (not included).

Button pdf d68e31203df031f489d35f81c36d6cf5ca4a4c7b4af67bf8fd1dc7ea535478ea View Lifting Ring Instructions
