Stamped 304 Stainless Steel w/ Over Molded Motor Housing
Bulk Display Amps dB Frequency (Hz) A B C Volts Weight Std. Pack Add to List
431510 431510-1 5 118 390±15 16" 4" 1-3/16" 12 1.71 1 ea
431530 431530-1 2.5 118 390±15 16" 4" 1-3/16" 24 1.71 1 ea

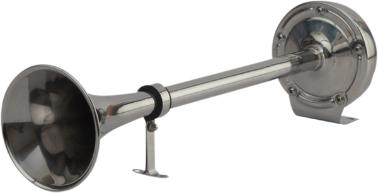

MaxBlast Single Trumpet Horn features a prewired, sealed sound unit. After a 600 hour salt spray test, this electric horn was completely rust-free! Horn wiring has no polarity, negative or positive can be attached to either wire. Mounting bracket can be used as a wiring template. When installed, the trumpet should point slightly downward to permit water drainage. At 118 decibels and a frequency (Hz) of 390±15A, this horn meets US Coast Guard's COLREGS and ABYC standard A-23 for use on vessels under 12m (39'). Constructed with an over molded motor housing under a stamped 304 stainless steel exterior and diaphragm, which protects the internal components from corrosion. One-year warranty. NMMA Type Accepted #2577069 & 2577070. 12 or 24VDC.

⚠ Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Button pdf d68e31203df031f489d35f81c36d6cf5ca4a4c7b4af67bf8fd1dc7ea535478ea View Maxblast Single Trumpet Horn Instructions
