Stamped 304 Stainless Steel w/ Over Molded Motor Housing

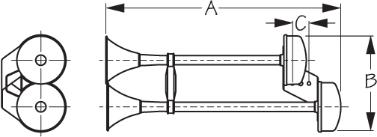

Bulk Display Amps dB Frequency (Hz) A B C Volts Weight Std. Pack Add to List
431520 431520-1 10 123 390±15/330±15 18-1/4" 7" 1-5/16" 12 3.55 1 ea
n/a 431540-1 5 123 390±15/330±15 18-1/4" 7" 1-5/16" 24 3.55 1 ea

This MaxBlast Single Trumpet Horn features a prewired, sealed sound unit. After a 600 hour salt spray test, this electric horn was completely rust-free! Horn wiring has no polarity, negative or positive can be attached to either wire. Mounting bracket can be used as a wiring template. When installed, the trumpet should point slightly downward to permit water drainage. At 123 decibels and a frequency (Hz) of 390±15/330±15, this horn meets the US Coast Guard's COLREGS, US Inland Navigation Rules, Annex III Regulations, and ABYC standard A-23 for boats up to 20 meters (66’). Constructed with an over molded motor housing under a stamped 304 stainless steel exterior and diaphragm, which protects the internal components from corrosion. One-year warranty. NMMA Type Accepted #2577051 & 2577052. 12 or 24VDC.

⚠ Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Button pdf d68e31203df031f489d35f81c36d6cf5ca4a4c7b4af67bf8fd1dc7ea535478ea View Maxblast Dual Trumpet Horn Instructions
