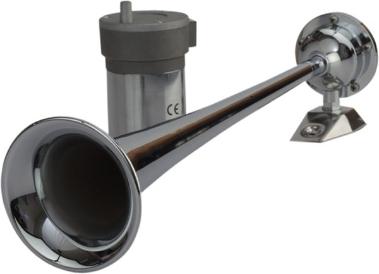

MAXBLAST AIR HORN - SINGLE TRUMPET

Chrome Plated Brass

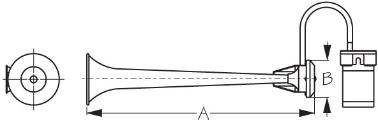

Bulk Display Amps dB Frequency (Hz) A B PSI Volts Weight Std. Pack Add to List
n/a 432510-1 20 120 315±15 17" 2-3/4" 11 12 3.22 1 ea

The MaxBlast Single Trumpet Air Horn display pack includes the horn, compressor, air tubing, and mounting hardware. At 120 decibels and a frequency (Hz) of 315±15A, this horn meets the US Coast Guard's COLREGS, US Inland Navigation Rules, Annex III Regulations, and ABYC standard A-23 for boats up to 20 meters (66’). When installed, the trumpet should point slightly downward to permit water drainage. Maximum: 20A. Constructed of durable chrome plated brass. One-year warranty. NMMA Type Accepted #2577054. 12VDC.

⚠ Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Button pdf d68e31203df031f489d35f81c36d6cf5ca4a4c7b4af67bf8fd1dc7ea535478ea View Maxblast Single Trumpet Air Horn Instructions
