Chrome Plated Brass

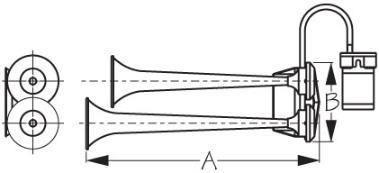

Bulk Display Amps dB Frequency (Hz) A B PSI Volts Weight Std. Pack Add to List
n/a 432520-1 20 121 375±15/315±15 17" 5-7/8" 11 12 4.53 1 ea

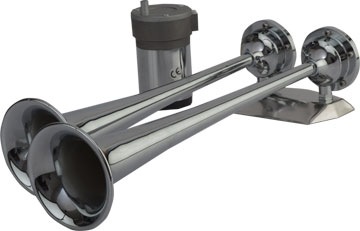

The MaxBlast Dual Trumpet Air Horn display pack includes the horn, compressor, air tubing, and mounting hardware. At 121 decibels and a frequency (Hz) of 375±15A/315±15A, this horn meets the US Coast Guard's COLREGS, US Inland Navigation Rules, Annex III Regulations, and ABYC standard A-23 for boats up to 20 meters (66’). When installed, the trumpet should point slightly downward to permit water drainage. Maximum: 20A. Constructed of durable chrome plated brass. One-year warranty. NMMA Type Accepted #2577055. 12VDC.

⚠ Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Button pdf d68e31203df031f489d35f81c36d6cf5ca4a4c7b4af67bf8fd1dc7ea535478ea View Maxblast Dual Trumpet Air Horn Instructions
