MAXBLAST AIR HORN - MINI DUAL TRUMPET

Chrome Plated Brass

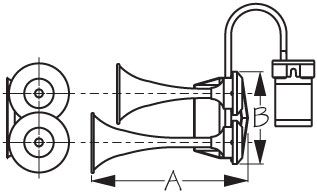

Bulk Display Amps dB Finish A B PSI Volts Weight Std. Pack Add to List
n/a 432620-1 20 125 Chrome 10" 5-7/8" 9-11 12 4.08 1 ea
432620 n/a Horn Only 2.20 1 ea

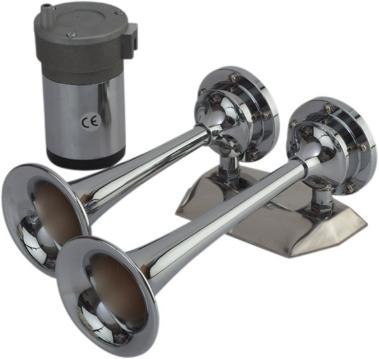

The MaxBlast Mini Dual Trumpet Air Horn display pack includes the horn, compressor, air tubing, and mounting hardware. At 125 decibels and a frequency (Hz) of 630±15A/525±15A, this horn meets the US Coast Guard's COLREGS, US Inland Navigation Rules, Annex III Regulations, and ABYC standard A-23 for boats up to 20 meters (66’). When installed, the trumpet should point slightly downward to permit water drainage. Maximum: 20A. Constructed of durable chrome plated brass. One-year warranty. NMMA Type Accepted #2577058. 12VDC.

⚠ Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Button pdf d68e31203df031f489d35f81c36d6cf5ca4a4c7b4af67bf8fd1dc7ea535478ea View Maxblast Dual Trumpet Mini Air Horn Instructions
