LIFTING/TOW EYE

Investment Cast 316 Stainless Steel

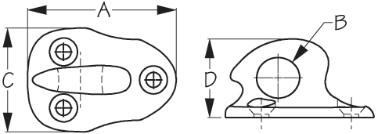

Bulk	Display	A	B	C	D	Max. Vertical Load	Fastener	Weight	Std. Pack	Add to List
048280	n/a	5"	1-5/8"	3-1/2"	2-3/4"	10,000 lbs.	1/2" FH	1.62	1 ea

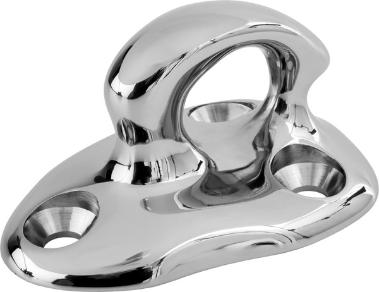

This Lifting/Tow Eye is rated at 10,000 lbs. safe working load. The load test was performed with the Lifting/Tow Eye in a vertical position. Constructed of corrosion resistant investment cast 316 stainless steel for superior durability. Installs with three 1/2" FH fasteners (not included).
