Powder Coated Aluminum/304 Stainless Steel

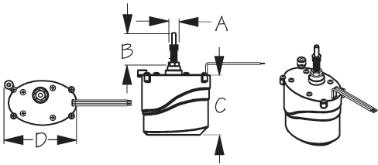

Bulk Display Description Sweep (Shaft Dia.) A (Shaft Len.) B C D Volts/Amps Weight Std. Pack Add to List
n/a 412321W-3 Motor Only 110° 3/8" 2-1/2" 3-1/4" 4-3/8" 12/2 1.45 1 ea
n/a 412328W-3 Motor Only 80° 3/8" 2-1/2" 3-1/4" 4-3/8" 12/2 1.45 1 ea

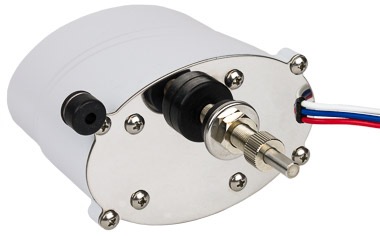

Waterproof Standard Wiper Motor for exterior/unprotected locations. Sweep angle is preset at 80° or 110°, both can be adjusted to 80° or 110°. Adjustable right or left-hand park, factory preset for left-hand park. Powers up to a 14" arm and blade combination (21" total length) using standard wiper arms with 1/4" I.D.. Fits the same footprint as most competitive standard wiper motors. Constructed of corrosion resistant powder coated aluminum housing with stainless steel base plate, shaft, and knurled drive nut. White only. IP66 rating. CE compliant. 3-year warranty.

⚠ Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Button pdf d68e31203df031f489d35f81c36d6cf5ca4a4c7b4af67bf8fd1dc7ea535478ea View Waterproof Wiper Motor Instructions
