Stamped Powder Coated Aluminum/304 Stainless Steel

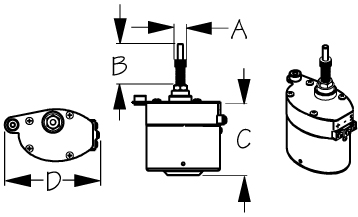

Bulk Display Description Sweep (Shaft Dia.) A (Shaft Len.) B C D Volts/Amps Weight Std. Pack Add to List
n/a 412321B-3 Motor Only 110° 3/8 2-1/2" 3-1/4" 4" 12/2 1.14 1 ea
n/a 412328B-3 Motor Only 80° 3/8" 2-1/2" 3-1/4" 4" 12/2 1.14 1 ea

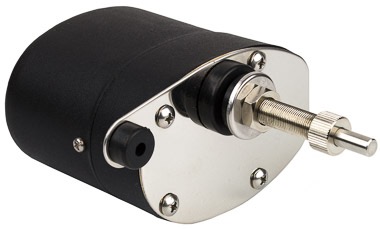

Standard Wiper Motor for interior/protected locations. Sweep angle is preset at 80° or 110°, both can be adjusted to 80° or 110°. Adjustable right or left-hand park, factory preset for left-hand park. Powers up to a 14" arm/blade combination (21" total length), using standard wiper arms with 1/4" I.D.. Same footprint as competitive standard wiper motors. Constructed of corrosion resistant powder coated aluminum housing with stainless steel base plate, shaft, and knurled drive nut. Black only. CE compliant. 3-year warranty.

⚠ Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Button pdf d68e31203df031f489d35f81c36d6cf5ca4a4c7b4af67bf8fd1dc7ea535478ea View Standard Wiper Motor Instructions
