INSTRUMENT HOLE ADAPTER FOR SOCKETS & METERS

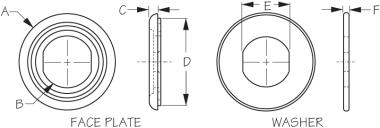

Injection Molded Nylon| Bulk | Display | A | B | C | D | E | F | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|---|---|
| n/a | 426101-1 | 2-3/16" | 1-3/16" | 3/16" | 2" | 1-1/16" | 1/8" | .04 | 5 ea |

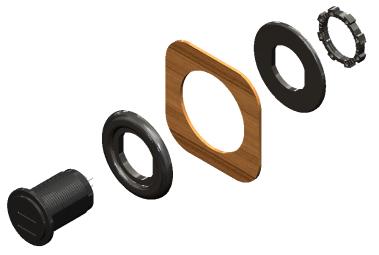

This Instrument Hole Adapter is designed to install standard 1-1/8” gauges and meters into 2” instrument dash panel holes. The socket adapter installs by placing the face plate in front of the dashboard then inserting the socket/meter in the hole with the washer behind. Designed with D-flats to prevent gauges from spinning, the assembly is held in place by the socket/meter nut for a clean finished look. Constructed of UV resistant injection molded nylon.
