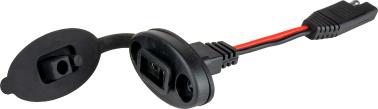

SAE POWER SOCKET - FRONT MOUNT

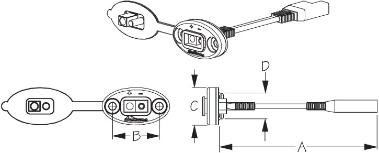

Injection Molded PVC| Bulk | Display | A | B | C | D | Volts | Max Amps | Wire Gauge | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|---|---|---|
| n/a | 426950-1 | 5" | 1-1/4" | 1" | 3/4" | 12-24 | 20A @ 12V | 14 AWM | .12 | 10 ea |
The SAE type Polarized Electrical Connector is a two-prong power socket connector set. Great for solar panel connections and maintaining battery charge. 14-gauge duplex wire. Drill 3/4" hole and install with two #10 RH screws (not included). Maximum: 20A @ 12VDC.
