Injection Molded Nylon

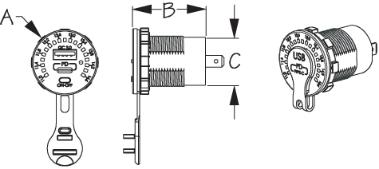

Bulk Display A B C Volts Total Output USB-C Watts USB 3.0 Watts Weight Std. Pack Add to List
426519 426519-1 1-7/16" 1-1/2" 1-1/8" 8-32 5V/6A 60W@24V 36W@12V .08 5 ea

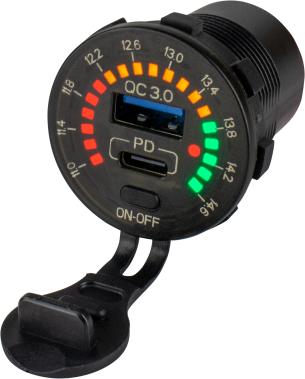

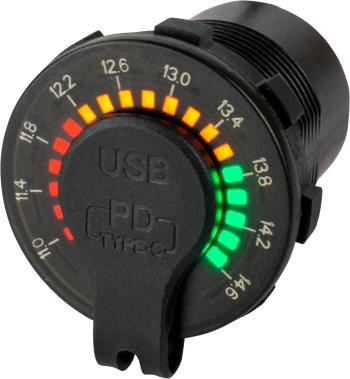

Rainbow Volt Meter with USB 3.0 & USB-C Power Socket charges two devices simultaneously, rainbow dial displays voltage status. The total output 6A load is split 3A per side as needed. USB 3.0 features Quick Charging (QC) for supported devices, giving enough power to charge phones, pads, and tablets quickly and efficiently. USB-C features Power Delivery (PD) for faster and more flexible charging. Protective dust cap extends the life of the charger. The rainbow display gives the user quick, visual, color-coded voltage information. Rainbow volt meter reads voltage up to 14.6 volts. Includes On/Off button to conserve battery power when not needed. Constructed of injection molded nylon. Installation is as easy as drilling a 1-1/8” hole, inserting the socket body, tightening the locking nut, and connecting the wires. Also fits Sea-Dog® Power Socket Shell (426100) and Mounting Bracket (426105). Output DC: 5V/6A. Input: 8-32VDC. USB-C Watts: 60W@24V. USB 3.0 Watts: 36W@12V. IP65 rating. RoHS compliant.

⚠ Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Button pdf d68e31203df031f489d35f81c36d6cf5ca4a4c7b4af67bf8fd1dc7ea535478ea View Round Digital Meter Instructions
