MINI BATTERY SWITCH WITH REMOVABLE KNOB

Machined Brass/Injection Molded Nylon

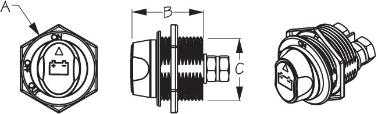

Bulk Display A B C Function Volts Amps Stud Diameter Weight Std. Pack Add to List
n/a 422730-1 2-3/16" 2-3/16" 2-1/16" On/Off 32 300 5/16" .14 1 ea
n/a 422732-1 1-3/4" 2-1/8" 1-1/8" On/Off 32 100 1/4" .09 1 ea Coming Soon!
422731 n/a Replacement Knob for 422730-1 only .04 1 ea

These Mini Battery Switches feature a removable knob for extra security. To remove, simply twist the cap to the OUT position and pull. Mini footprint makes it ideal for close quarters. The 422730-1 is rated at 300A continuous and 1000A cranking amps and the 422732-1 is rated at 100A continuous and 150A cranking amps. Installation is as easy as drilling a 2-1/16" hole for the 422730-1 or a 1-1/8" hole for the 422732-1, inserting the socket body, tightening the locking nut, and connecting the wires. Constructed of machined brass and injection molded nylon.
