SD-53 BATTERY DISCONNECT W/ BREAKER

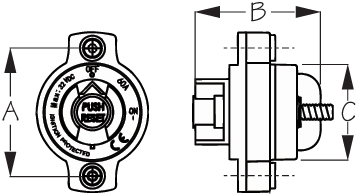

Machined Brass/Injection Molded Nylon| Bulk | Display | A | B | C | Function | Volts | Amps | Stud Diameter | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 830400 | 830400-1 | 2" | 2" | 1-1/2" | On/Off | 32 | 30 | 1/4" | .09 | 10 ea/5 ea | Coming Soon! |
| 830401 | 830401-1 | 2" | 2" | 1-1/2" | On/Off | 32 | 40 | 1/4" | .10 | 10 ea/5 ea | |
| 830402 | 830402-1 | 2" | 2" | 1-1/2" | On/Off | 32 | 50 | 1/4" | .12 | 10 ea/5 ea | |
| 830403 | 830403-1 | 2" | 2" | 1-1/2" | On/Off | 32 | 60 | 1/4" | .13 | 10 ea/5 ea | |
| 830404 | 830404-1 | 2" | 2" | 1-1/2" | On/Off | 32 | 70 | 1/4" | .14 | 10 ea/5 ea | |

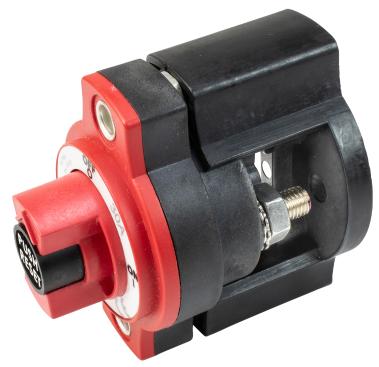

| 830905 | 830905-1 | Standoff-Accessory | .02 | 10 ea/5 ea |

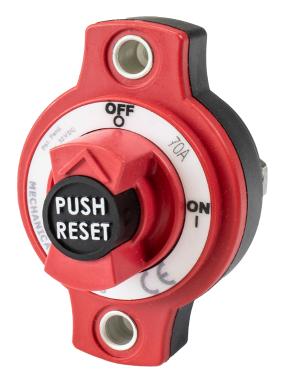

These Battery Disconnects with Breaker feature a small footprint which makes them ideal for close quarters. The combination of a rotary switch and breaker in a single product allows cost savings by eliminating the added components, material and labor of a separate battery switch and circuit breaker/fuse for accessory circuits. (Not rated for engine starter circuits). Terminal Studs: ¼”-28. Range: 30A-70A. Maximum Voltage: 42VDC. Amperage Interrupt Capacity (AIC): 1.5kA/U3 @ 28VDC per ABYC (SAE J553 & UL1077*) and 3kA/U3 @ 14VDC per ABYC (SAE J553 & UL1077*). Ignition Protection: ISO 8846*, USCG, ABYC, UL1500* and SAE J1171. Interrupt Capacity: SAE J553, ABYC E-11, UL1077* Ingress Protection: IP67. Made in the U.S.A.
