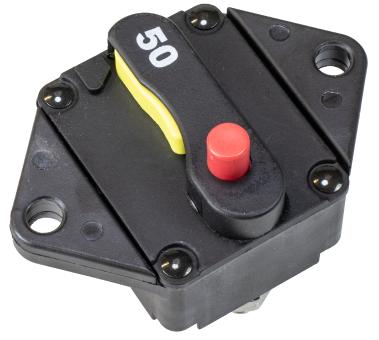

SD-17 CIRCUIT BREAKER - PANEL MOUNT
Stainless Steel Studs & Washers/Thermoset Plastic| Bulk | Display | Amps | A | B | C | D | E | Volts | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 830190 | 830190-1 | 25 | 2-15/16" | 1-15/16" | 2-1/8" | 2-7/16" | 1-9/16" | 48 | .18 | 1 ea | Coming Soon! |
| 830191 | 830191-1 | 30 | 2-15/16" | 1-15/16" | 2-1/8" | 2-7/16" | 1-9/16" | 48 | .18 | 1 ea | |
| 830192 | 830192-1 | 40 | 2-15/16" | 1-15/16" | 2-1/8" | 2-7/16" | 1-9/16" | 48 | .18 | 1 ea | |
| 830193 | 830193-1 | 50 | 2-15/16" | 1-15/16" | 2-1/8" | 2-7/16" | 1-9/16" | 48 | .18 | 1 ea | |
| 830194 | 830194-1 | 60 | 2-15/16" | 1-15/16" | 2-1/8" | 2-7/16" | 1-9/16" | 48 | .18 | 1 ea | |
| 830195 | 830195-1 | 70 | 2-15/16" | 1-15/16" | 2-1/8" | 2-7/16" | 1-9/16" | 48 | .18 | 1 ea | |
| 830196 | 830196-1 | 80 | 2-15/16" | 1-15/16" | 2-1/8" | 2-7/16" | 1-9/16" | 48 | .18 | 1 ea | |
| 830197 | 830197-1 | 100 | 2-15/16" | 1-15/16" | 2-1/8" | 2-7/16" | 1-9/16" | 48 | .18 | 1 ea | |
| 830198 | 830198-1 | 120 | 2-15/16" | 1-15/16" | 2-1/8" | 2-7/16" | 1-9/16" | 48 | .18 | 1 ea | |
| 830199 | 830199-1 | 150 | 2-15/16" | 1-15/16" | 2-1/8" | 2-7/16" | 1-9/16" | 48 | .18 | 1 ea |
These Hi-Amp Resettable Thermal Circuit Breakers provide a visible indication of tripped condition. Panel mounted, water resistant and sealed for engine compartment and bilge area applications. Terminal Studs: ¼”-28. Range: 25A-150A. Maximum Voltage: 48 VDC. Amperage Interrupt Capacity (AIC): 3,000A @ 14VDC, 1,500A @ 48VDC per SAE J1625, ABYC-E11, UL1077*. Ignition Protected: SAE J1171. Ingress Protection: IP67. Made in the USA.
