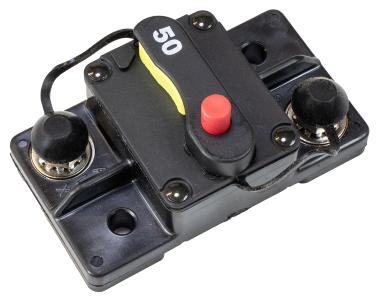

SD-17 CIRCUIT BREAKER - SURFACE MOUNT

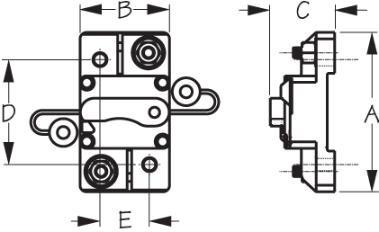

Stainless Steel Studs & Washers/Thermoset Plastic| Bulk | Display | Amps | A | B | C | D | E | Volts | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 830220 | 830220-1 | 25 | 2-7/8" | 1-7/8" | 1-3/4" | 2-3/16" | 1-1/8" | 48 | .23 | 1 ea | Coming Soon! |
| 830221 | 830221-1 | 30 | 2-7/8" | 1-7/8" | 1-3/4" | 2-3/16" | 1-1/8" | 48 | .23 | 1 ea | |
| 830222 | 830222-1 | 40 | 2-7/8" | 1-7/8" | 1-3/4" | 2-3/16" | 1-1/8" | 48 | .23 | 1 ea | |
| 830223 | 830223-1 | 50 | 2-7/8" | 1-7/8" | 1-3/4" | 2-3/16" | 1-1/8" | 48 | .23 | 1 ea | |
| 830224 | 830224-1 | 60 | 2-7/8" | 1-7/8" | 1-3/4" | 2-3/16" | 1-1/8" | 48 | .23 | 1 ea | |
| 830225 | 830225-1 | 70 | 2-7/8" | 1-7/8" | 1-3/4" | 2-3/16" | 1-1/8" | 48 | .23 | 1 ea | |
| 830226 | 830226-1 | 80 | 2-7/8" | 1-7/8" | 1-3/4" | 2-3/16" | 1-1/8" | 48 | .23 | 1 ea | |
| 830227 | 830227-1 | 100 | 2-7/8" | 1-7/8" | 1-3/4" | 2-3/16" | 1-1/8" | 48 | .23 | 1 ea | |
| 830228 | 830228-1 | 120 | 2-7/8" | 1-7/8" | 1-3/4" | 2-3/16" | 1-1/8" | 48 | .23 | 1 ea | |
| 830229 | 830229-1 | 150 | 2-7/8" | 1-7/8" | 1-3/4" | 2-3/16" | 1-1/8" | 48 | .23 | 1 ea |
These Hi-Amp Resettable Thermal Circuit Breakers provide a visible indication of tripped condition. Surface mounted, water resistant and sealed for engine compartment and bilge area applications. Terminal Studs: ¼”-28. Range: 25A-150A. Maximum Voltage: 48 VDC. Amperage Interrupt Capacity (AIC): 3,000A @ 14VDC, 1,500A @ 48VDC per SAE J1625, ABYC-E11, UL1077*. Ignition Protected: SAE J1171. Ingress Protection: IP67. Made in the USA.
