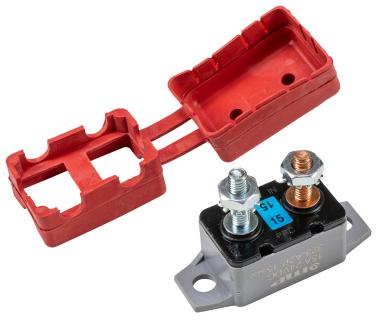

SD-32 CIRCUIT BREAKER - SHORT STOP - RESET ONLY

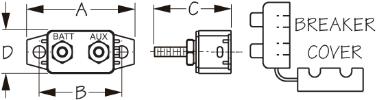

Stamped Brass/Injection Molded Nylon/Polycarbonate| Bulk | Display | Amps | Volts | Cover Included | A | B | C | D | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 830350 | 830350-1 | 10 | 12 or 24 | Yes | 2" | 1-9/16" | 1-1/16" | 13/16" | .05 | 10 ea | Coming Soon! |
| 830351 | 830351-1 | 15 | 12 or 24 | Yes | 2" | 1-9/16" | 1-1/16" | 13/16" | .05 | 10 ea | |
| 830352 | 830352-1 | 20 | 12 or 24 | Yes | 2" | 1-9/16" | 1-1/16" | 13/16" | .05 | 10 ea | |
| 830353 | 830353-1 | 25 | 12 or 24 | Yes | 2" | 1-9/16" | 1-1/16" | 13/16" | .05 | 10 ea | |
| 830354 | 830354-1 | 30 | 12 or 24 | Yes | 2" | 1-9/16" | 1-1/16" | 13/16" | .05 | 10 ea | |
| 830355 | 830355-1 | 40 | 12 or 24 | Yes | 2" | 1-9/16" | 1-1/16" | 13/16" | .05 | 10 ea | |
| 830356 | 830356-1 | 50 | 12 or 24 | Yes | 2" | 1-9/16" | 1-1/16" | 13/16" | .05 | 10 ea |
These Resettable Circuit Breakers with manual reset button are for use with higher amperage accessories. These breakers are ignition protected and can be installed aboard gasoline powered boats. May be used on 12 VDC or 24 VDC systems. Terminal Studs: #10-32. Range: 10A-50A. Maximum Voltage: 28 VDC. Amperage Interrupt Capacity (AIC): 2500A @12 VDC. Ignition Protected: SAE Standard J553 & J1171. Ingress Protection: IP66.
