SD-87 CIRCUIT BREAKER - PANEL MOUNT

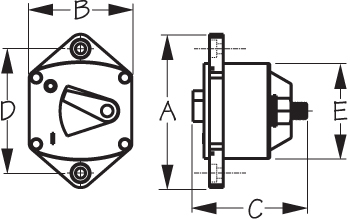

Stainless Steel Studs & Washers/Thermoset Plastic| Bulk | Display | Amps | A | B | C | D | E | Volts | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 830450 | 830450-1 | 25 | 3-3/8" | 2-1/4" | 2-9/16" | 2-3/4" | 2-1/8" | 48 | .18 | 1 ea | Coming Soon! |
| 830451 | 830451-1 | 30 | 3-3/8" | 2-1/4" | 2-9/16" | 2-3/4" | 2-1/8" | 48 | .18 | 1 ea | |
| 830452 | 830452-1 | 40 | 3-3/8" | 2-1/4" | 2-9/16" | 2-3/4" | 2-1/8" | 48 | .18 | 1 ea | |
| 830453 | 830453-1 | 50 | 3-3/8" | 2-1/4" | 2-9/16" | 2-3/4" | 2-1/8" | 48 | .18 | 1 ea | |
| 830454 | 830454-1 | 60 | 3-3/8" | 2-1/4" | 2-9/16" | 2-3/4" | 2-1/8" | 48 | .18 | 1 ea | |
| 830455 | 830455-1 | 70 | 3-3/8" | 2-1/4" | 2-9/16" | 2-3/4" | 2-1/8" | 48 | .18 | 1 ea | |
| 830456 | 830456-1 | 80 | 3-3/8" | 2-1/4" | 2-9/16" | 2-3/4" | 2-1/8" | 48 | .18 | 1 ea | |
| 830457 | 830457-1 | 90 | 3-3/8" | 2-1/4" | 2-9/16" | 2-3/4" | 2-1/8" | 48 | .18 | 1 ea | |
| 830458 | 830458-1 | 100 | 3-3/8" | 2-1/4" | 2-9/16" | 2-3/4" | 2-1/8" | 48 | .18 | 1 ea | |
| 830459 | 830459-1 | 120 | 3-3/8" | 2-1/4" | 2-9/16" | 2-3/4" | 2-1/8" | 48 | .18 | 1 ea | |
| 830460 | 830460-1 | 135 | 3-3/8" | 2-1/4" | 2-9/16" | 2-3/4" | 2-1/8" | 48 | .18 | 1 ea | |
| 830461 | 830461-1 | 150 | 3-3/8" | 2-1/4" | 2-9/16" | 2-3/4" | 2-1/8" | 48 | .18 | 1 ea | |
| 830462 | 830462-1 | 200 | 3-3/8" | 2-1/4" | 2-9/16" | 2-3/4" | 2-1/8" | 48 | .18 | 1 ea |

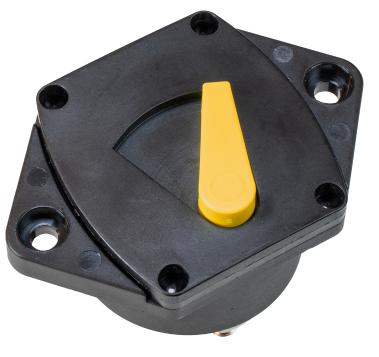

These Hi-Amp Resettable Circuit Breakers provide a visible indication of tripped condition. Panel mounted, water resistant and sealed for engine compartment and bilge area applications. Terminal Studs: 5/16”-18. Range: 25A-200A. Maximum Voltage: 48VDC. Amperage Interrupt Capacity (AIC): 5000A@14VDC, 3000A@28VDC, 1500A@48VDC per SAE J553, ABYC-E11, UL1077. Ignition Protected: SAE J1171. Ingress Protection: IP66. Made in the USA.
