SD-87 CIRCUIT BREAKER - SURFACE MOUNT

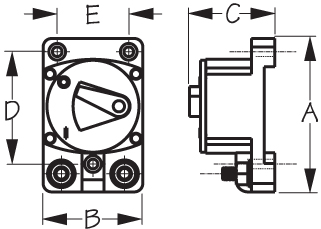

Stainless Steel Studs & Washers/Thermoset Plastic| Bulk | Display | Amps | A | B | C | D | E | Volts | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 830520 | 830520-1 | 25 | 3-1/2" | 2-1/4" | 1-15/16" | 2-9/16" | 1-5/8" | 48 | .18 | 1 ea | Coming Soon! |
| 830521 | 830521-1 | 30 | 3-1/2" | 2-1/4" | 1-15/16" | 2-9/16" | 1-5/8" | 48 | .18 | 1 ea | |
| 830522 | 830522-1 | 40 | 3-1/2" | 2-1/4" | 1-15/16" | 2-9/16" | 1-5/8" | 48 | .18 | 1 ea | |
| 830523 | 830523-1 | 50 | 3-1/2" | 2-1/4" | 1-15/16" | 2-9/16" | 1-5/8" | 48 | .18 | 1 ea | |
| 830524 | 830524-1 | 60 | 3-1/2" | 2-1/4" | 1-15/16" | 2-9/16" | 1-5/8" | 48 | .18 | 1 ea | |
| 830525 | 830525-1 | 70 | 3-1/2" | 2-1/4" | 1-15/16" | 2-9/16" | 1-5/8" | 48 | .18 | 1 ea | |
| 830526 | 830526-1 | 80 | 3-1/2" | 2-1/4" | 1-15/16" | 2-9/16" | 1-5/8" | 48 | .18 | 1 ea | |
| 830527 | 830527-1 | 90 | 3-1/2" | 2-1/4" | 1-15/16" | 2-9/16" | 1-5/8" | 48 | .18 | 1 ea | |
| 830528 | 830528-1 | 100 | 3-1/2" | 2-1/4" | 1-15/16" | 2-9/16" | 1-5/8" | 48 | .18 | 1 ea | |
| 830529 | 830529-1 | 120 | 3-1/2" | 2-1/4" | 1-15/16" | 2-9/16" | 1-5/8" | 48 | .18 | 1 ea | |
| 830530 | 830530-1 | 135 | 3-1/2" | 2-1/4" | 1-15/16" | 2-9/16" | 1-5/8" | 48 | .18 | 1 ea | |
| 830531 | 830531-1 | 150 | 3-1/2" | 2-1/4" | 1-15/16" | 2-9/16" | 1-5/8" | 48 | .18 | 1 ea | |
| 830532 | 830532-1 | 200 | 3-1/2" | 2-1/4" | 1-15/16" | 2-9/16" | 1-5/8" | 48 | .18 | 1 ea |

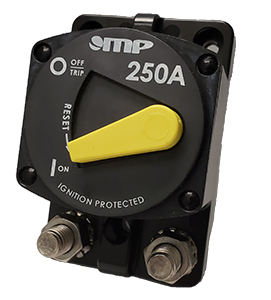

These Hi-Amp Resettable Circuit Breakers provide a visible indication of tripped condition. Surface mounted, water resistant and sealed for engine compartment and bilge area applications. Terminal Studs: 5/16”-18. Range: 25A-200A. Maximum Voltage: 48VDC. Amperage Interrupt Capacity (AIC): 5000A@14VDC, 3000A@28VDC, 1500A@48VDC per SAE J553, ABYC-E11, UL1077. Ignition Protected: SAE J1171. Ingress Protection: IP66. Made in the USA.
