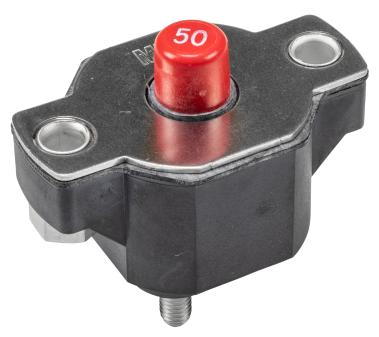

SD-18 CIRCUIT BREAKER - RESET ONLY - A/C
Stainless Steel Studs & Washers/Thermoset Plastic| Bulk | Display | Amps | A | B | C | D | E | Volts | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 830572 | 830572-1 | 15 | 2" | 1-3/16" | 1-3/8" | 1-9/16" | 1-3/16" | 32 | .15 | 10 ea/5 ea | Coming Soon! |
| 830573 | 830573-1 | 20 | 2" | 1-3/16" | 1-3/8" | 1-9/16" | 1-3/16" | 32 | .15 | 10 ea/5 ea | |
| 830574 | 830574-1 | 30 | 2" | 1-3/16" | 1-3/8" | 1-9/16" | 1-3/16" | 32 | .15 | 10 ea/5 ea | |
| 830575 | 830575-1 | 40 | 2" | 1-3/16" | 1-3/8" | 1-9/16" | 1-3/16" | 32 | .15 | 10 ea/5 ea | |
| 830576 | 830576-1 | 50 | 2" | 1-3/16" | 1-3/8" | 1-9/16" | 1-3/16" | 32 | .15 | 10 ea/5 ea | |
| 830577 | 830577-1 | 60 | 2" | 1-3/16" | 1-3/8" | 1-9/16" | 1-3/16" | 32 | .15 | 10 ea/5 ea |
SD-18 Circuit Breakers are designed to protect an electrical circuit from damage caused by excess current. Vibration and shock resistant. Unlike sacrificial fuses they have the advantage of being resettable after tripping. Panel mounted compact design. 15-60A @ 250 VAC. 32VDC. Amperage Interrupt Capacity (AIC) of 3000 amperes. UL 1500 Ignition Protected, UL 1077 Recognized. Compliances: MIL-STD-202, SAE J553, ABYC-E11, SAE J1428. Trip Free. Made in the U.S.A.
