MALLEABLE WIRE ROPE CLIP

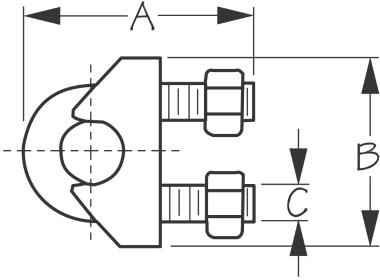

Electro-Galvanized Malleable Steel| Bulk | Display | Wire Size | A | B | C | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|
| 159103 | 159103-1 | 1/8" | 15/16" | 7/8" | 1/8" | .04/.08 | 10 ea/10 pr | |
| 159105 | 159105-1 | 3/16" | 1-1/8" | 1" | 3/16" | .06/.12 | 10 ea/10 pr | |
| 159106 | 159106-1 | 1/4" | 1-7/16" | 1-1/4" | 1/4" | .11/.22 | 10 ea/10 pr | |
| 159108 | 159108-1 | 5/16" | 1-9/16" | 1-3/8" | 1/4" | .13/.26 | 10 ea/10 pr | |
| 159110 | 159110-1 | 3/8" | 1-15/16" | 1-5/8" | 5/16" | .23/.46 | 10 ea/10 pr | |
| 159111 | n/a | 7/16" | 2" | 1-11/16" | 5/16" | .23 | 10 ea | |
| 159112 | 159112-1 | 1/2" | 2-7/16" | 1-15/16" | 3/8" | .34 | 10 ea | |
| 159116 | n/a | 5/8" | 2-5/8" | 2-3/16" | 7/16" | .52 | 10 ea | |
| 159119 | n/a | 3/4" | 3-1/16" | 2-3/8" | 1/2" | .87 | 10 ea | |
| 159122 | n/a | 7/8" | 3-1/2" | 2-13/16" | 9/16" | 1.33 | 10 ea | |
| 159126 | n/a | 1" | 3-15/16" | 3-1/16" | 9/16" | 1.78 | 10 ea |

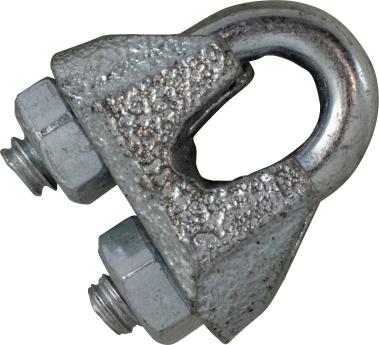

Malleable Wire Rope Clips are used to clamp the loose end of a length of wire rope once it has been looped back to form an eye. These fittings consist of a u-bolt and saddle secured by two nuts. Wire rope assemblies generally require multiple wire rope clips to secure the ends properly. Constructed of electro-galvanized malleable steel for corrosion protection. Not designed for overhead lifting applications.
⚠ Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
