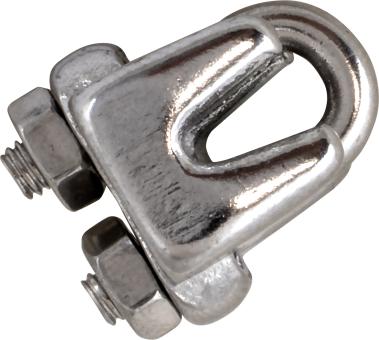

WIRE ROPE CLIP
Investment Cast 316 Stainless Steel Body/304 Stainless Steel U-Bolt| Bulk | Display | Wire Size | A | B | C (Threads) | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|
| 159502 | 159502-1 | 2 mm | 11/16" | 9/16" | 3 mm-.50 | .02 | 10 ea | |
| 159503 | 159503-1 | 3 mm | 13/16" | 5/8" | 3 mm-.50 | .03 | 10 ea | |
| 159504 | 159504-1 | 4 mm | 15/16" | 3/4" | 4 mm-.70 | .04 | 10 ea | |
| 159505 | 159505-1 | 5 mm | 1-1/8" | 7/8" | 5 mm-.80 | .05 | 10 ea | |
| 159506 | 159506-1 | 6 mm | 1-1/4" | 1-1/16" | 6 mm-1.00 | .09 | 10 ea | |
| 159508 | 159508-1 | 8 mm | 1-5/8" | 1-3/8" | 8 mm-1.25 | .18 | 10 ea | |
| 159510 | 159510-1 | 10 mm | 2" | 1-3/4" | 10 mm-1.50 | .34 | 10 ea | |
| 159512 | n/a | 12 mm | 2-1/2" | 1-15/16" | 12 mm-1.75 | .53 | 10 ea |
These Wire Rope Clips are used in conjunction with thimbles to offer an alternative to splicing looped ends of wire rope. These fittings consist of a U-bolt and saddle secured by two nuts. Recommended for use on uncoated wire rope only. Constructed of corrosion resistant stainless steel and feature metric threads. Not designed for overhead lifting applications.
