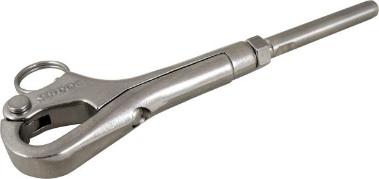

PELICAN HOOK

Investment Cast 316 Stainless Steel

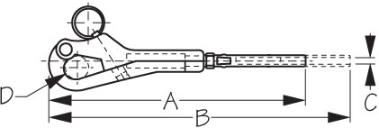

Bulk Display A B C (End Fitting) D Thread Weight Std. Pack Add to List
189700 n/a 3-15/16" Body Only n/a 5/8" 5/16"-24 RH .31 10 ea
189705 n/a 6-7/8" 8-3/8" 3/16" Wire 5/8" 5/16"-24 RH .41 5 ea

These Pelican Hooks open with a pull of the quick release plunger, then close automatically when pressed shut. Capable of being released under load, these hooks are used as a removable fastener where a gate is required. Available in 5/16”-24 UNF right-hand thread direction only. For use with 3/16" wire. Constructed of corrosion resistant investment cast 316 stainless steel. 189705 includes both swage terminal and locknut.
