Injection Molded Nylon

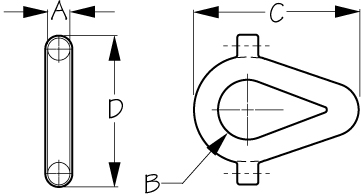

Bulk Display A (Rope Dia.) B C D Weight Std. Pack Add to List
174571 n/a 1/4" 11/16" 1-7/8" 1-5/8" .01 50 ea
174574 n/a 1/2" 1-1/8" 2-15/16" 2-11/16" .04 20 ea
174576 n/a 5/8" 1-3/16" 3-3/8" 3" .04 20 ea

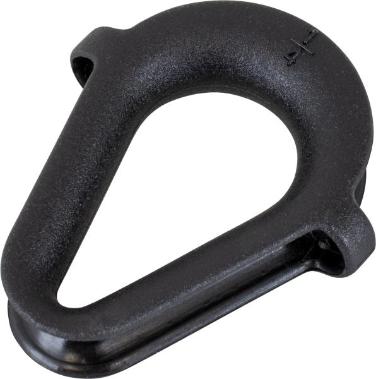

These Thimbles with Keepers are used to protect rope from contact with the load it is hoisting. The thimbles keep the eye splice from being crushed while reducing chafe and abrasion. Ideal for floating rope, pennants and general rigging. Integral keepers reduce possibility of rope becoming separated from thimble. Thimble size should match rope size. Constructed of UV resistant injection molded nylon.
