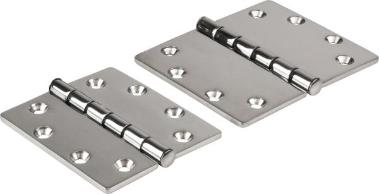

HEAVY DUTY BUTT HINGE - CENTER PIN/COMMERCIAL PATTERN

Investment Cast 316 Stainless Steel

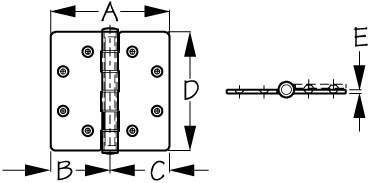

Bulk Display A B C D E Fastener Weight Std. Pack Add to List
205235 n/a 4" 2" 2" 4-1/2" 3/16" 1/4" FH 1.50 2 ea
205237 n/a 5-1/2" 2-3/4" 2-3/4" 4-1/2" 3/16" 1/4" FH 1.75 2 ea

These Heavy Duty Butt Hinges with Center Pins are designed to fold flat. For applications where extra strength is required. The integral nylon bearings promote rattle-free, silent movement and give the hinge a smoother action. Commercial ANSI template screw hole pattern. Constructed of corrosion resistant investment cast 316 stainless steel. Installs with eight 1/4” FH fasteners (not included).
