JAW SLIDE & BRACKET FITTINGS

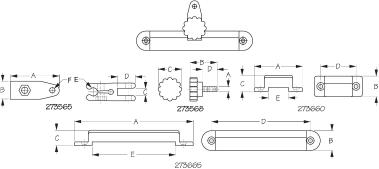

Injection Molded Nylon| Bulk | Display | Description | A | B | C | D | E | F | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 273565 | 273565-1 | Bracket Mount Jaw Slide | 2-1/16" | 3/4" | 5/16" | 3/4" | 3/8" | 1/4" | .03/.06 | 10 ea/10 pr | |
| 273568 | 273568-1 | Head Screw | 1/4"-28 | 1-3/8" | 1-3/16" | 3/4" | n/a | n/a | .03/.06 | 10 ea/10 pr | |
| 273660 | 273660-1 | Slide Bracket | 2-3/8" | 1" | 13/16" | 1-11/16" | 1" | n/a | .03/.06 | 10 ea/10 pr | |
| 273665 | 273665-1 | Slide Bracket | 6" | 1" | 3/4" | 5" | 4-3/16" | n/a | .06/.12 | 10 ea/10 pr |

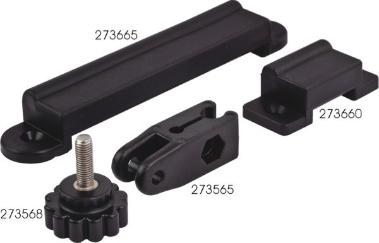

These Jaw Slide & Bracket Fittings are components in a Bimini top fitting system. Bracket Fittings are designed to mount on the side of the gunnel for a jaw slide to snap onto. The jaw slide then glides along the bracket and is adjusted and secured by the head screw. Constructed of UV resistant injection molded nylon. Brackets install with two #8 FH fasteners (not included).
