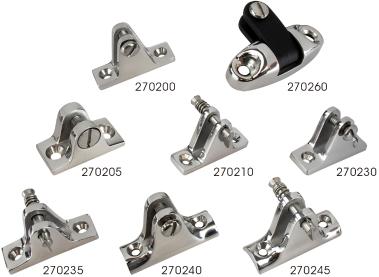

TOP MOUNT HINGE FITTINGS

Investment Cast 316 Stainless Steel
Bulk Display Description Base Pin Size Pin/Screw Part # Fastener Weight Std. Pack Add to List
270200 270200-1 90° Deck Hinge 3/4" x 2-1/4" 1/4" 0P27001 #10 FH .24 10 ea
270205 270205-1 90° Deck Hinge Heavy Duty 1" x 2-1/16" 5/16" 0P27004 1/4" FH .24 10 ea
270210 270210-1 90° Deck Hinge (Removable Pin) 3/4" x 2-1/4" 1/4" 0P27002 #10 FH .23 10 ea
270230 270230-1 10° Angle Base Deck Hinge 3/4" x 2-1/4" 1/4" 0P27001 #10 FH .23 10 ea
270235 270235-1 10° Angle Base Deck Hinge (Removable Pin) 3/4" x 2-1/4" 1/4" 0P27002 #10 FH .23 10 ea
270240 270240-1 1" Concave Base Deck Hinge 3/4" x 2-1/4" 1/4" 0P27001 #10 FH .19 10 ea
270245 270245-1 1" Concave Base Deck Hinge (Removable Pin) 3/4" x 2-1/4" 1/4" 0P27002 #10 FH .19 10 ea
270260 270260-1 180° Adjustable Angle Deck Hinge 1" x 2-3/4" 1/4" 0P27001 #10 FH .10 10 ea

These Top Mount Hinge Fittings are designed to mount horizontally and attach an eye end in Bimini top applications. Concave Hinges are designed to rail mount on 1” tubing. Angled Hinges are used for mounting items on slanted surfaces like sloped gunwales. 180° Adjustable Hinge allows universal mounting at almost any angle including vertical mounting. Removable Pin Deck Hinges feature a spring loaded quick release pin for easy top removal. 1/4” or 5/16” pin size. Constructed of corrosion resistant investment cast 316 stainless steel. Installs with two FH fasteners (not included).
