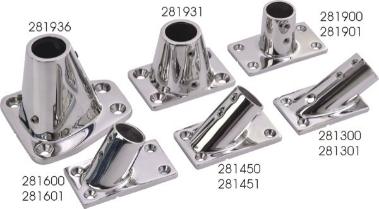

RAIL BASE FITTINGS - RECTANGULAR

Investment Cast 316 Stainless Steel
Bulk Display Description Tube O.D.* Base Fastener Weight Std. Pack Add to List
281300 281300-1 30° Rectangular Base 7/8" 1-3/4" x 2-5/8" #10 FH .43 10 ea
281301 281301-1 30° Rectangular Base 1" 1-7/8" x 3-3/16" 1/4" FH .51 10 ea
281450 281450-1 45° Rectangular Base 7/8" 1-11/16" x 3" #10 FH .42 10 ea
281451 281451-1 45° Rectangular Base 1" 1-7/8" x 3-1/4" 1/4" FH .59 10 ea
281600 281600-1 60° Rectangular Base 7/8" 1-3/4" x 3-1/16" #10 FH .48 10 ea
281601 281601-1 60° Rectangular Base 1" 1-7/8" x 3-1/4" 1/4" FH .57 10 ea
281900 281900-1 90° Rectangular Base 7/8" 1-11/16" x 3" #10 FH .42 10 ea
281901 281901-1 90° Rectangular Base 1" 1-7/8" x 3-3/16" 1/4" FH .53 10 ea
281931 281931-1 90° Volcano Base 1" 2-1/16" x 3" 1/4" FH .46 10 ea
281936 281936-1 90° Volcano Base 1" 3-11/16" x 3-3/8" 1/4" FH .97 10 ea

These Rectangular Rail Base Fittings include set screws where appropriate. Set screws can be purchased separately (299999-1). Requires 1/8" Allen wrench to install. Constructed of corrosion resistant investment cast 316 stainless steel. Installs with four FH fasteners (not included). * Stainless tube wall thickness 0.049".
