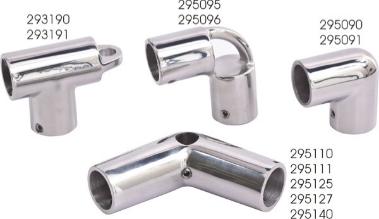

RAIL TEES, ELBOWS & BOW FORMS
Investment Cast 316 Stainless Steel| Bulk | Display | Description | Tube O.D.* | Degree | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|
| 293190 | 293190-1 | Cable Anchor | 7/8" | 90° | .43 | 5 ea | |
| 293191 | 293191-1 | Cable Anchor | 1" | 90° | .47 | 5 ea | |
| 295090 | 295090-1 | Elbow | 7/8" | 90° | .34 | 10 ea | |
| 295091 | 295091-1 | Elbow | 1" | 90° | .44 | 10 ea | |
| 295095 | 295095-1 | Elbow & Anchor Eye | 7/8" | 90° | .47 | 5 ea | |
| 295096 | 295096-1 | Elbow & Anchor Eye | 1" | 90° | .49 | 5 ea | |
| 295110 | 295110-1 | Bow Form | 7/8" | 110° | .66 | 5 ea | |
| 295111 | 295111-1 | Bow Form | 1" | 110° | .89 | 5 ea | |
| 295125 | 295125-1 | Bow Form | 7/8" | 125° | .56 | 5 ea | |
| 295126 | 295126-1 | Bow Form | 1" | 125° | .76 | 5 ea | |
| 295140 | 295140-1 | Bow Form | 7/8" | 140° | .53 | 5 ea |
These Rail Tees, Elbows, & Bow Forms can be attached to railing with set screws or pop riveted using stainless or aluminum rivets. Includes set screws where appropriate. Set screws can be purchased separately (299999-1). Requires 1/8" Allen wrench to install. Mounting hole in 110° Bow Form is designed to fit 1/2” diameter flagpoles. Constructed of corrosion resistant investment cast 316 stainless steel. * Stainless tube wall thickness 0.049".
