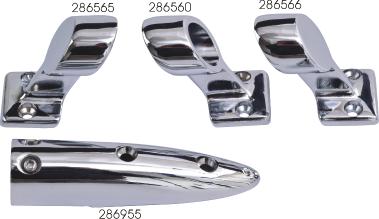

HANDRAIL FITTINGS

Die Cast Zinc Chrome Plated
Bulk Display Description Rail Height Tube O.D.* Fastener Weight Std. Pack Add to List
286560 286560-1 60° Center 2-1/8" 7/8" #10 FH .24 10 ea
286565 286565-1 60° End - Left (Port) Inside Set Screw 2-1/8" 7/8" #10 FH .26 10 ea
286566 286566-1 60° End - Right (Starboard)Inside Set Screw 2-1/8" 7/8" #10 FH .26 10 ea
n/a 286955-1 5-1/2° Blend Base n/a 7/8" #10 FH .35 10 ea

These Handrail Fittings can be attached to railing with set screws or pop riveted using stainless or aluminum rivets. Set screws included with display packed fittings only (except 286560-1). Set screws can be purchased separately (299999-1) for bulk fittings (except 286560). Requires 1/8" Allen wrench. Installs with #10 FH fasteners (not included). Constructed of chrome plated die cast zinc. Recommended for freshwater use. *Stainless tubing with a wall thickness of 0.049”.
