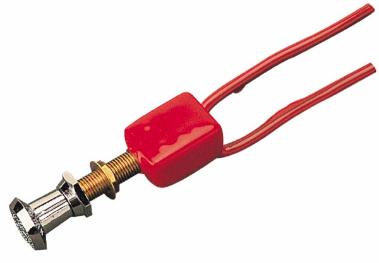

SPLASH GUARD ON-OFF PUSH-PULL SWITCH

Stamped Brass

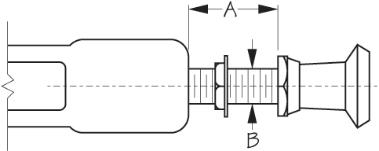

Bulk Display A B Volts Amps Weight Std. Pack Add to List
420396 420396-1 15/16" 3/8" 12 15 .14 10 ea

Splash Guard On-Off Push-Pull Switch features positive actuation with two positions On-Off (normally Off). Maximum panel thickness: 7/8”. Constructed of stamped brass with PVC coating to protect terminals and switch from water (not designed for immersion). 15A @ 12VDC.
