RESETTABLE CIRCUIT BREAKER

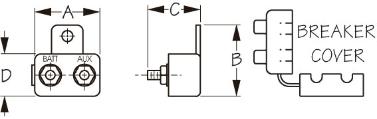

Stamped Brass/Injection Molded Nylon/Polycarbonate| Bulk | Display | Amps | Volts | Cover Included | A | B | C | D | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 420842 | 420842-1 | 20 | 12 or 24 | No | 1-5/16" | 1-7/16" | 1-3/8" | 7/8" | .04 | 10 ea | |
| n/a | 420852-1 | 20 | 12 or 24 | Yes | 1-5/16" | 1-7/16" | 1-3/8" | 7/8" | .05 | 5 ea | |
| 420843 | 420843-1 | 30 | 12 or 24 | No | 1-5/16" | 1-7/16" | 1-3/8" | 7/8" | .04 | 10 ea | |
| n/a | 420853-1 | 30 | 12 or 24 | Yes | 1-5/16" | 1-7/16" | 1-3/8" | 7/8" | .05 | 5 ea | |
| 420844 | 420844-1 | 40 | 12 or 24 | No | 1-5/16" | 1-7/16" | 1-3/8" | 7/8" | .04 | 10 ea | |
| n/a | 420854-1 | 40 | 12 or 24 | Yes | 1-5/16" | 1-7/16" | 1-3/8" | 7/8" | .05 | 5 ea | |
| 420845 | 420845-1 | 50 | 12 or 24 | No | 1-5/16" | 1-7/16" | 1-3/8" | 7/8" | .04 | 10 ea | |
| n/a | 420855-1 | 50 | 12 or 24 | Yes | 1-5/16" | 1-7/16" | 1-3/8" | 7/8" | .05 | 5 ea | |
| 420840 | 420840-1 | Breaker Cover Only | .01 | 1 ea |

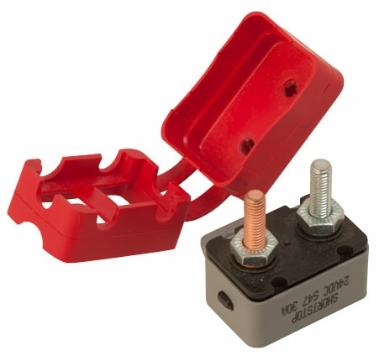

These Inline Resettable Circuit Breakers with manual reset button are for use with higher amperage accessories. These breakers are ignition protected and can be installed aboard gasoline powered boats. May be used on 12VDC or 24VDC systems. Constructed of injection molded nylon and polycarbonate and stamped brass #10-32 studs with nuts. The copper post is the battery or "power in" post and the silver post is the auxiliary or "power out" protected post. Available with or without splash proof Breaker Cover (420840). Complies with SAE standard J553 and SAE J1171.
⚠ Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
