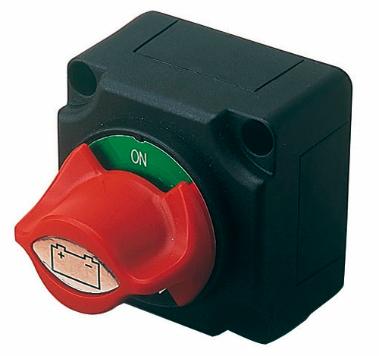

BATTERY SWITCH WITH KNOB

Machined Brass/Injection Molded Nylon

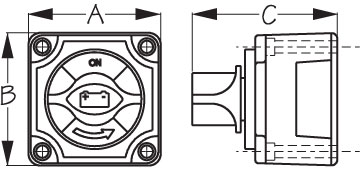

Bulk Display A B C Function Volts Amps Stud Diameter Weight Std. Pack Add to List
422760 422760-1 2-3/4" 2-3/4" 3" Off/1/Both Batteries/2 48 300 3/8" .36 1 ea
422761 422761-1 2-3/4" 2-3/4" 3" On/Off 48 300 3/8" .36 1 ea

These battery disconnect and selector switches either switch a single battery to a single load group (422760 & 422761) or isolates and/or combines two battery banks (422760). Can be surface or rear panel mounted. Ignition protected. Safe for installation on gasoline powered boats. Constructed of injection molded nylon with machined brass contacts. Installs with four #10 RH fasteners (not included).
