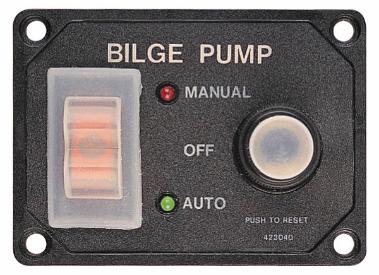

SPLASH GUARD BILGE PUMP PANEL WITH CIRCUIT BREAKER

Injection Molded ABS

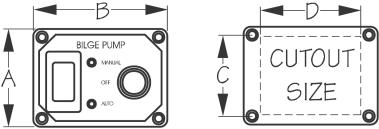

Bulk Display A B C D Volts Fastener Weight Std. Pack Add to List
423046 423046-1 2-3/16" 3" 1-11/16" 2-1/4" 12 #6 RH .11 5 ea
420443 420443-1 Replacement Rocker Switch .02 10 ea
420839 420839-1 Thermal Breaker Boot .01 10 pr

The Splash Guard Bilge Pump Panel features a splash guard switch cover making this panel ideal for applications where the front might be subjected to light spray or water (NOT designed for total water immersion). This deluxe version features a three-way switch allowing both automatic and manual switching of the bilge pump. When operated in Manual mode, a red LED light is activated. When in Automatic mode, a green LED light is activated. The panel is designed so the words “Bilge Pump" will illuminate when back lit, allowing for easy location and operation at night. UL listed 20A circuit breaker included. Additional breaker sizes available (420805-420830). Constructed of injection molded ABS for maximum durability and corrosion resistance. Installs with four #6 RH fasteners (not included).

⚠ Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Button pdf d68e31203df031f489d35f81c36d6cf5ca4a4c7b4af67bf8fd1dc7ea535478ea View Bilge Pump Panel With Circuit Breaker Instructions
