COLLECTOR BOX

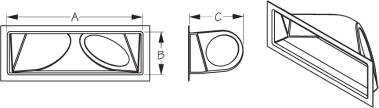

Vacuum Formed ABS| Bulk | Display | Hose Size | A | B | C | Mounting | Vent Area | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|---|---|
| 331293 | n/a | 3" | 12-1/4" | 3-5/8" | 5" | Right | 5.29 in2 | .25 | 5 ea | |
| 331294 | n/a | 4" | 12-1/4" | 3-5/8" | 5" | Right | 9.68 in2 | .26 | 5 ea | |
| 331296 | n/a | 3" | 12-1/4" | 3-5/8" | 5" | Left | 5.29 in2 | .23 | 5 ea | |
| 331298 | n/a | 4" | 12-1/4" | 3-5/8" | 5" | Left | 9.68 in2 | .22 | 5 ea |

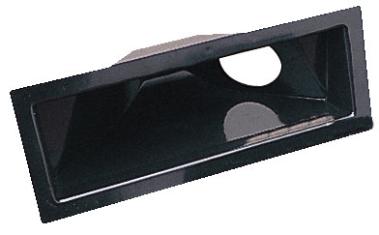

These Collector Boxes are designed to be used in conjunction with a louvered vent to facilitate air intake and exhaust. The collector boxes are available with either a 3" or 4" hose attachment hole (friction fit Spiral wire hose) and left hand or right hand hose hole options as viewed from the rear side. For use with either stainless Louvered Vent (331290) or injection molded ABS Louvered Vent (337290). Constructed of impact resistant vacuum formed ABS. 3" hose vent area 5.29 in2. 4" hose vent area 9.68 in2.
