PUSH BUTTON CABINET LATCH

Chrome Plated Brass/Plastic Housing

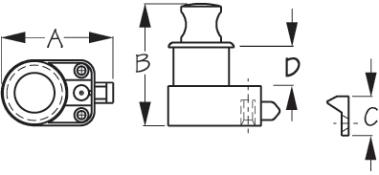

Bulk Display A B C D Max. Door Thickness Finish Fastener Weight Std. Pack Add to List
226312 226312-1 2" 2-3/16" 11/16" 11/16" 11/16" Chrome #6 RH .16 5 ea

This Push Button Cabinet Latch functions as both a latch and handle. Push button operation activates and secures the latch with a simple, deliberate motion. Positive action locking function prevents cabinets from opening while in motion. Sleek, low-profile design makes them convenient in tight spaces. Great for glove compartments. Suitable for left or right-hand side uses. Easy to install by boring a single 1" hole. Includes catch. Constructed of sturdy plastic with a chrome plated brass knob. Installs with four #6 RH fasteners (included).

⚠ Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Button pdf d68e31203df031f489d35f81c36d6cf5ca4a4c7b4af67bf8fd1dc7ea535478ea View Cabinet Latch Instructions
