FIXED ANTENNA BASE

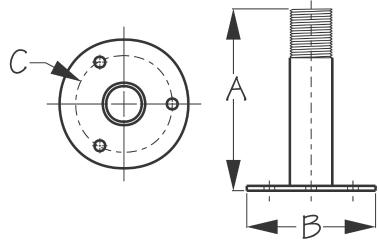

Formed 304 Stainless Steel| Bulk | Display | A | B | C | Fastener | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|
| 329515 | 329515-1 | 4-1/4" | 3" | 2-1/4" | 1/4" RH | .42 | 5 ea | |
| 329517 | 329517-1 | 1-1/2" | 3" | 2-1/4" | 1/4" RH | .27 | 5 ea |

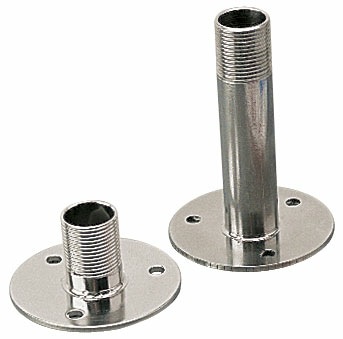

Fixed Antenna Base features a flange mount base. Designed to allow wire to feed directly through the base, eliminating the need for a separate cable grommet. Accepts any standard antenna with 1"-14 threads, but is ideal for TV, Loran, GPS, and VHF antennas. Constructed of corrosion resistant formed 304 stainless steel. Installs with three 1/4” RH fasteners (not included).
