MRV WIPER MOTOR

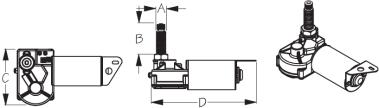

Stamped Powder Coated Steel/304 Stainless Steel| Bulk | Display | Finish | Sweep | (Shaft Dia.) A | (Shaft Len.) B | C | D | Volts/Amps | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|---|---|---|
| n/a | 412111B-3 | Black | 110° | 5/8" | 1-1/2" | 4" | 7-1/4" | 12/2 | 2.65 | 1 ea | |
| n/a | 412111W-3 | White | 110° | 5/8" | 1-1/2" | 4" | 7-1/4" | 12/2 | 2.65 | 1 ea | |
| n/a | 412118B-3 | Black | 80° | 5/8" | 1-1/2" | 4" | 7-1/4" | 12/2 | 2.65 | 1 ea | |
| n/a | 412118W-3 | White | 80° | 5/8" | 1-1/2" | 4" | 7-1/4" | 12/2 | 2.65 | 1 ea | |
| n/a | 412121B-3 | Black | 110° | 5/8" | 2-1/2" | 4" | 7-1/4" | 12/2 | 2.65 | 1 ea | |
| n/a | 412121W-3 | White | 110° | 5/8" | 2-1/2" | 4" | 7-1/4" | 12/2 | 2.65 | 1 ea | |
| n/a | 412128B-3 | Black | 80° | 5/8" | 2-1/2" | 4" | 7-1/4" | 12/2 | 2.65 | 1 ea | |
| n/a | 412128W-3 | White | 80° | 5/8" | 2-1/2" | 4" | 7-1/4" | 12/2 | 2.65 | 1 ea | |
| n/a | 412131B-3 | Black | 110° | 5/8" | 3-1/2" | 4" | 7-1/4" | 12/2 | 2.65 | 1 ea | |
| n/a | 412131W-3 | White | 110° | 5/8" | 3-1/2" | 4" | 7-1/4" | 12/2 | 2.65 | 1 ea | |
| n/a | 412138B-3 | Black | 80° | 5/8" | 3-1/2" | 4" | 7-1/4" | 12/2 | 2.65 | 1 ea | |
| n/a | 412138W-3 | White | 80° | 5/8" | 3-1/2" | 4" | 7-1/4" | 12/2 | 2.65 | 1 ea | |
| n/a | 412171B-3 | Black | 110° | 5/8" | 2-1/2" | 4" | 7-1/4" | 24/1 | 2.65 | 1 ea | |
| n/a | 412178B-3 | Black | 80° | 5/8" | 2-1/2" | 4" | 7-1/4" | 24/1 | 2.65 | 1 ea |

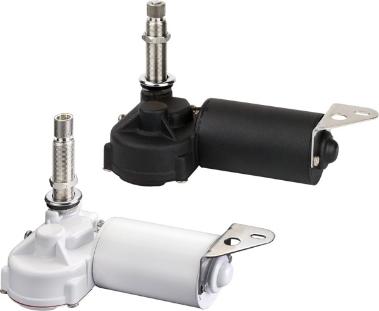

MRV Wiper Motors are a two-speed, self-parking heavy duty motor for interior/protected locations. Sweep angle is preset at 80° or 110°, but can be reset to 40°, 50°, 60°, 70°, 80°, 90°, or 110°. Adjustable right or left-hand park, factory preset for left-hand park. Powers up to a 24” arm and blade configuration (36” total length). Constructed of powder coated steel and aluminum housing with stainless steel mounting bracket, brass, and stainless steel shaft with brass knurled fitting. Available in black or white, 12VDC or 24VDC (black only). CE compliant. 3-year warranty.
⚠ Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
View MRV Wiper Motor Adjustment Instructions
View MRV Wiper Motor Wiring Instructions
