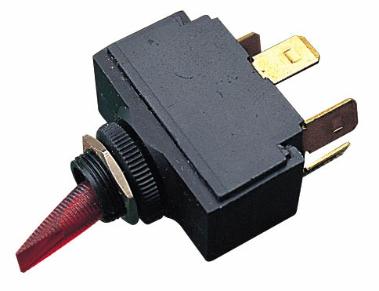

ILLUMINATING TOGGLE SWITCH

Stamped Brass/Injection Molded Nylon/Polycarbonate

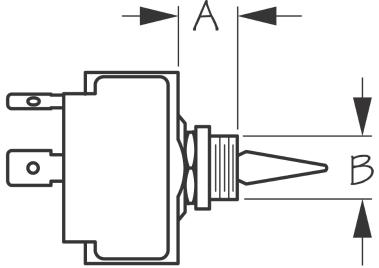

Bulk Display Circuit Action Terminals Amps Volts A B Weight Std. Pack Add to List
420111 420111-1 SPST On/Off 3 Blades 15 12 3/8" 1/2" .04 10 ea
420113 420113-1 DPDT On/Off/On 6 Blades 15 12 3/8" 1/2" .04 10 ea
420118 420118-1 SPDT On/Off/On 4 Blades 15 12 3/8" 1/2" .04 10 ea

These Illuminating Toggle Switches feature a locking ring and lever seal to resist water penetration. Illuminates red in the ON position. Fits panels up to 1/4" thick and requires a 15/32" mounting hole. 1/4" spade terminals make it easy to install. Constructed of stamped brass and injection molded nylon with a polycarbonate toggle. 15A @ 12VDC.

⚠ Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Button pdf d68e31203df031f489d35f81c36d6cf5ca4a4c7b4af67bf8fd1dc7ea535478ea View Illuminating Toggle Switch Instructions

Button pdf d68e31203df031f489d35f81c36d6cf5ca4a4c7b4af67bf8fd1dc7ea535478ea View Illuminating Toggle Switch (DPDT) Instructions
