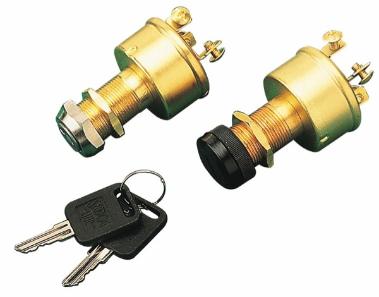

THREE POSITION IGNITION SWITCH

Stamped Brass

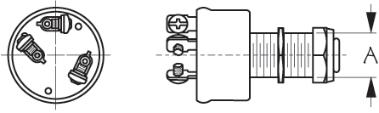

Bulk Display Action A Max. Panel Shaft Type Terminals Cap Weight Std. Pack Add to List
n/a 420350-1 Off-Ignition-Start 13/16" 1-1/8" Long 3 Screws No .37 5 ea
n/a 420355-1 Off-Ignition-Start 13/16" 1-1/8" Long 3 Screws Yes .38 5 ea
420399 n/a Blank Replacement Key .01 5 ea

These Three Position Ignition Switches are used for off, ignition, and start functions. 13/16" diameter long shaft. Maximum panel thickness: 1-1/8”. Three screw terminal electrical connection. Ignition: 15A @ 12VDC. Solenoid: 30A @ 12VDC. Includes two keys. Constructed of stamped brass. Available with or without rubber boot.
