THREE POSITION IGNITION SWITCH-MAGNETO STYLE

Stamped Brass

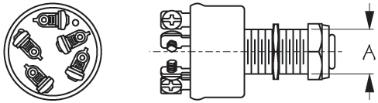

Bulk Display Action A Max. Panel Shaft Type Terminals Cap Weight Std. Pack Add to List
n/a 420351-1 Off-Ignition-Start 13/16" 1-1/8" Long 5 Screws No .39 5 ea
420399 n/a Blank Replacement Key .01 5 ea

Three Position Magneto-Style Ignition Switch for off, ignition, and start functions. Ignition (accessory) circuit is not activated in the solenoid (start) position. 13/16" diameter long shaft for a maximum panel thickness: 1-1/8”. Five screw terminal electrical connection. Ignition: 15A @ 12VDC. Solenoid: 30A @ 12VDC. Constructed of stamped brass. Includes two keys. OEM Note: Sea-Dog® ignitions are available upon request with customer logo on keys and keyed alike for large orders. Contact your Sea-Dog® representative for details.

⚠ Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Button pdf d68e31203df031f489d35f81c36d6cf5ca4a4c7b4af67bf8fd1dc7ea535478ea View Ignition Switch Instructions
