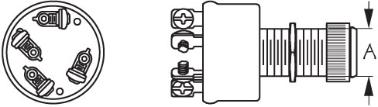

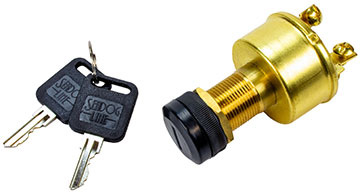

FOUR POSITION IGNITION SWITCH

Stamped Brass
Bulk Display Action A Max. Panel Shaft Type Terminals Cap Weight Std. Pack Add to List
n/a 420356-1 Acc.-Off-Ign.-Start 13/16" 1-1/8" Long 4 Screws Yes .36 5 ea
420399 n/a Blank Replacement Key .01 5 ea

Four Position Ignition Switch for accessory, off, ignition, and start functions. 13/16" diameter long shaft. Maximum panel thickness: 1-1/8”. Four screw terminal electrical connection. Ignition: 15A @ 12VDC. Solenoid: 30A @ 12VDC. Accessory: 15A @ 12VDC. Constructed of stamped brass. Includes two keys and rubber boot.
