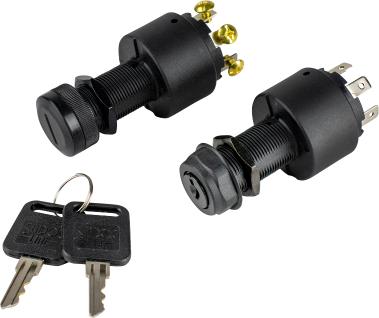

FOUR POSITION IGNITION SWITCH

Polypropylene
Bulk Display Action A Max. Panel Shaft Type Terminals Cap Weight Std. Pack Add to List
n/a 420375-1 Acc.-Off-Ign.-Start 13/16" 1-1/8" Long 4 Screws Yes .27 5 ea
n/a 420379-1 Acc.-Off-Ign.-Start 13/16" 1-1/8" Long 4 Blades No .20 5 ea
420398 420398-1 Replacement Cap .01 10 ea
420399 n/a Blank Replacement Key .01 5 ea

These Four Position Ignition Switches are used for accessory, off, ignition, and start functions. 13/16" diameter long shaft. Maximum panel thickness: 1-1/8”. Four screw or four blade terminal electrical configurations. Ignition: 15A @ 12VDC. Solenoid: 30A @ 12VDC. Accessory: 15A @ 12VDC. Constructed of polypropylene. Includes two keys. Screw terminal version includes rubber boot.

⚠ Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Button pdf d68e31203df031f489d35f81c36d6cf5ca4a4c7b4af67bf8fd1dc7ea535478ea View Ignition Switch Instructions
