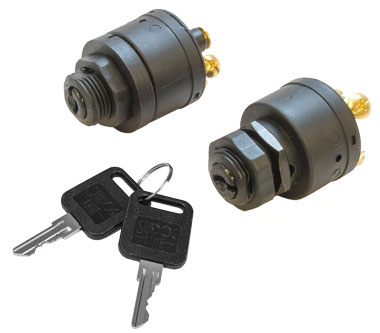

THREE POSITION IGNITION SWITCH-MAGNETO STYLE

Polypropylene
Bulk Display Action A Max. Panel Shaft Type Terminals Cap Weight Std. Pack Add to List
n/a 420381-1 Off-Ign.-Start-Choke 13/16" 5/8" Short 6 Screws No .18 5 ea
n/a 420382-1 Off-Ign.-Start-Choke 13/16" 5/8" Short 5 Screws-1 Boss No .18 5 ea
420399C n/a Blank Replacement Key .01 5 ea

These Three Position Magneto Style Ignition Switches are used for off, ignition, start, and choke functions. 13/16" diameter short shaft for a maximum panel thickness: 5/8”. Six screw or five screw plus one boss terminal electrical connection. Ignition: 15A @ 12VDC. Solenoid: 30A @ 12VDC. Choke: 7A @ 12VDC. Constructed of polypropylene. Includes two keys. Push to choke.
