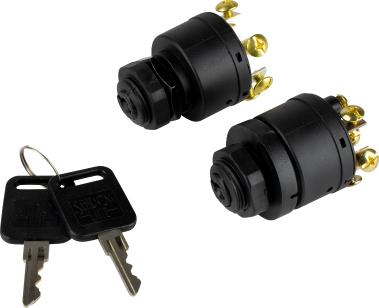

FOUR POSITION IGNITION SWITCH-MAGNETO STYLE

Polypropylene

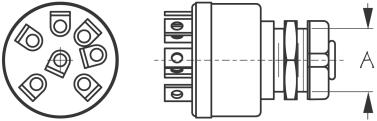

Bulk Display Action A Max. Panel Shaft Type Terminals Cap Weight Std. Pack Add to List
n/a 420385-1 Acc.-Off-Ign.-Start-Choke 13/16" 5/8" Short 7 Screw No .18 5 ea
420386 420386-1 Acc.-Off-Ign.-Start-Choke 13/16" 5/8" Short 6 Screws-1 Boss No .18 5 ea
420399C n/a Blank Replacement Key .01 5 ea

Four Position Magneto Style Ignition Switch for accessory, off, ignition, start, and choke functions. 13/16" diameter short shaft for a maximum panel thickness: 5/8”. Seven screw or six screw plus one boss terminal electrical connection. Ignition: 15A @ 12VDC. Solenoid: 30A @ 12VDC. Choke: 7A @ 12VDC. Accessory: 15A @ 12VDC. Constructed of polypropylene. Includes two keys. Push to choke.

⚠ Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Button pdf d68e31203df031f489d35f81c36d6cf5ca4a4c7b4af67bf8fd1dc7ea535478ea View Ignition Switch Instructions
