WATERPROOF HEAVY DUTY WIPER MOTOR

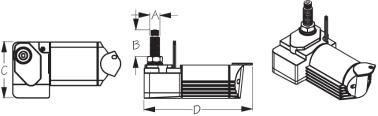

Powder Coated Aluminum/304 Stainless Steel| Bulk | Display | Finish | Sweep | (Shaft Dia.) A | (Shaft Len.) B | C | D | Volts/Amps | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|---|---|---|
| n/a | 412211B-3 | Black | 110° | 5/8" | 1-1/2" | 4" | 7-1/2" | 12/2 | 3.20 | 1 ea | |
| n/a | 412211W-3 | White | 110° | 5/8" | 1-1/2" | 4" | 7-1/2" | 12/2 | 3.20 | 1 ea | |
| n/a | 412218B-3 | Black | 80° | 5/8" | 1-1/2" | 4" | 7-1/2" | 12/2 | 3.20 | 1 ea | |
| n/a | 412218W-3 | White | 80° | 5/8" | 1-1/2" | 4" | 7-1/2" | 12/2 | 3.20 | 1 ea | |
| n/a | 412221B-3 | Black | 110° | 5/8" | 2-1/2" | 4" | 7-1/2" | 12/2 | 3.20 | 1 ea | |
| n/a | 412221W-3 | White | 110° | 5/8" | 2-1/2" | 4" | 7-1/2" | 12/2 | 3.20 | 1 ea | |
| n/a | 412228B-3 | Black | 80° | 5/8" | 2-1/2" | 4" | 7-1/2" | 12/2 | 3.20 | 1 ea | |
| n/a | 412228W-3 | White | 80° | 5/8" | 2-1/2" | 4" | 7-1/2" | 12/2 | 3.20 | 1 ea | |
| n/a | 412231B-3 | Black | 110° | 5/8" | 3-1/2" | 4" | 7-1/2" | 12/2 | 3.20 | 1 ea | |
| n/a | 412231W-3 | White | 110° | 5/8" | 3-1/2" | 4" | 7-1/2" | 12/2 | 3.20 | 1 ea | |
| n/a | 412238B-3 | Black | 80° | 5/8" | 3-1/2" | 4" | 7-1/2" | 12/2 | 3.20 | 1 ea | |
| n/a | 412238W-3 | White | 80° | 5/8" | 3-1/2" | 4" | 7-1/2" | 12/2 | 3.20 | 1 ea | |
| n/a | 412261W-3 | White | 110° | 5/8" | 1-1/2" | 4" | 7-1/2" | 24/1 | 3.20 | 1 ea | |
| n/a | 412268W-3 | White | 80° | 5/8" | 1-1/2" | 4" | 7-1/2" | 24/1 | 3.20 | 1 ea | |
| n/a | 412271W-3 | White | 110° | 5/8" | 2-1/2" | 4" | 7-1/2" | 24/1 | 3.20 | 1 ea | |
| n/a | 412278W-3 | White | 80° | 5/8" | 2-1/2" | 4" | 7-1/2" | 24/1 | 3.20 | 1 ea |

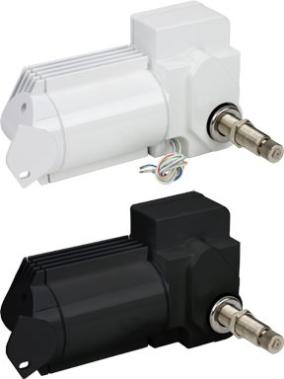

Waterproof Heavy Duty Wiper Motors are a two-speed, self-parking motor for exterior/unprotected locations. Sweep angle is preset at 80° or 110°, but can be reset to 40°, 50°, 60°, 70°, 80°, 90°, or 110°. Adjustable right or left-hand park, factory preset for left-hand park. Powers up to a 24” arm and blade configuration (36” total length). Constructed of powder coated aluminum housing with stainless steel mounting bracket, shaft, and knurled fitting. Available in black or white, 12VDC or 24VDC (white only). IP66 rating. CE compliant. 3-year warranty.
⚠ Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
View Waterproof Heavy Duty Wiper Motor Adjustment Instructions
View Waterproof Heavy Duty Wiper Motor Wiring Instructions
